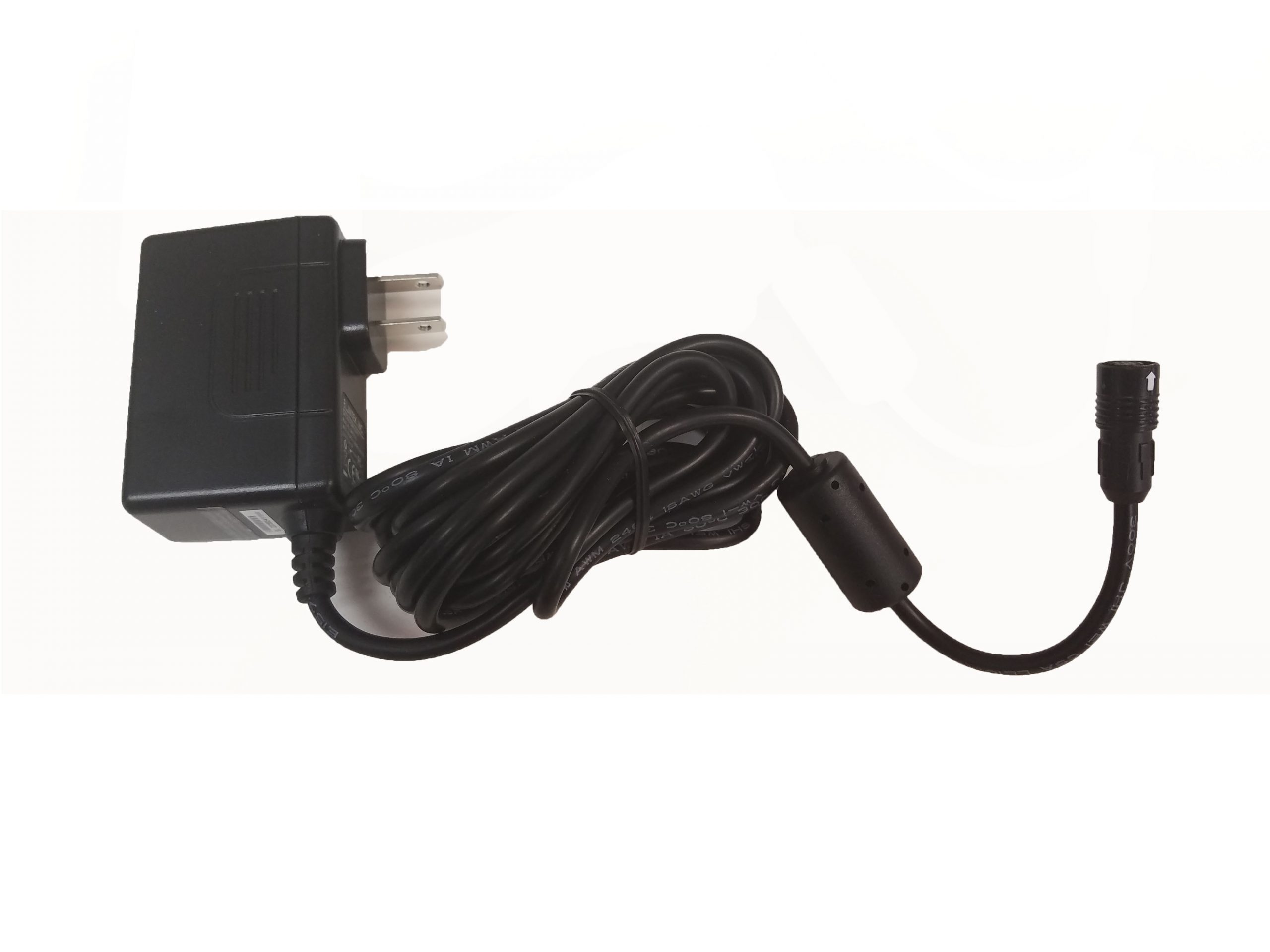

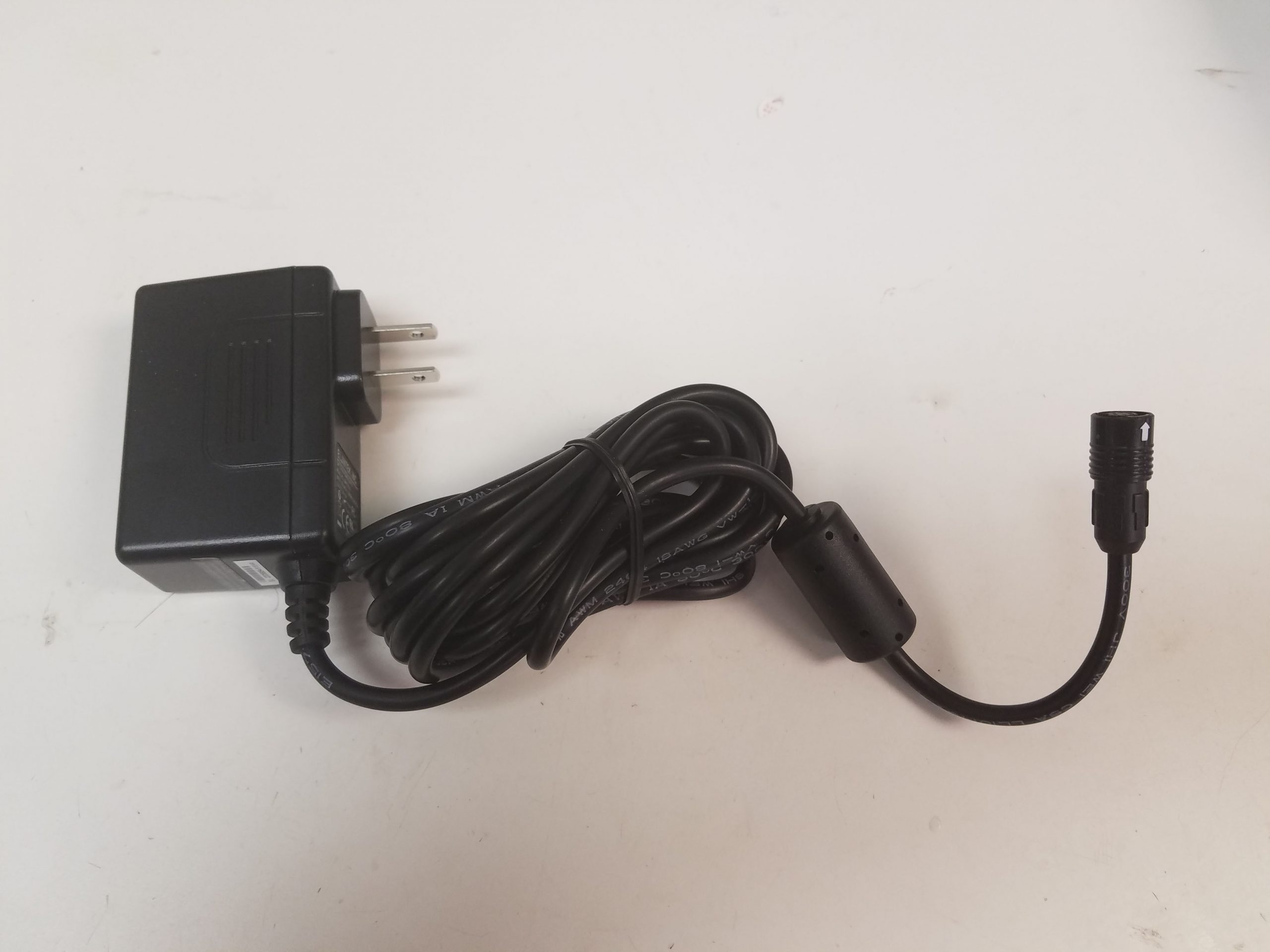

Baxter Sigma Spectrum AC adapter part# 35727

CADD Solis Specifications

Dimensions

• Size: 4.1 cm x 10.2 cm x 12.7 cm (1.6 in x 4 in x 5in)
• Weight: 595g (21 oz) including 4 AA Alkaline batteries

Resolution

• CADD medication cassette reservoir: 0.05 mL per pump stroke nominal
• CADD administration set: 0.05 mL per pump stroke nominal
• CADD high volume administration set: 0.1 mL per pump stroke nominal

System Temperatures

• Operating Temperature: 2°C to 40°C 36°F to 104°F
• Storage and transportation Temperature: –20°C to 60°C –4°F to 140°F
• Maximum surface temperature (while operating): 48°C (118°F) Maximum
• Moisture Protection: Splashproof (E) per IEC 60529
• Relative Humidity: y 20% to 90% relative humidity, non-condensing
• Atmospheric Pressure: 70 kPa to 106 kPa 10.2 psi to 15.4 psi

Power

• Power Source:
  • AC adapter
  • CADD-Solis rechargeable battery pack
  • CADD-Solis Communication Module with integrated rechargeable battery
  • Four AA alkaline batteries (for example, Duracell PC1500 / MN1500, IEC LR6)
• charging system for internal memory backup battery: The internal memory backup battery uses lithium manganese dioxide technology. It charges whenever the pump is powered on and has a 10-month memory capacity once it has been charged for 250 hours at 20°C (68°F).
• Battery Fallot alarm: The alarm sounds for at least 2 minutes if the pump has been powered up for a minimum of 4 minutes. Note: Alarm enabled while the pump is in run mode only.
