Braun IV tubing part# 354212 w/ 2 CARESITE Needle-Free Injection case of 24

Original price was: $195.Current price is: $125.

Categories: , Brand:
No Sales Tax
1 year warranty on equipment orders
Commercial financing available for orders over $2,000
Braun IV tubing ref 354212

Case of 24

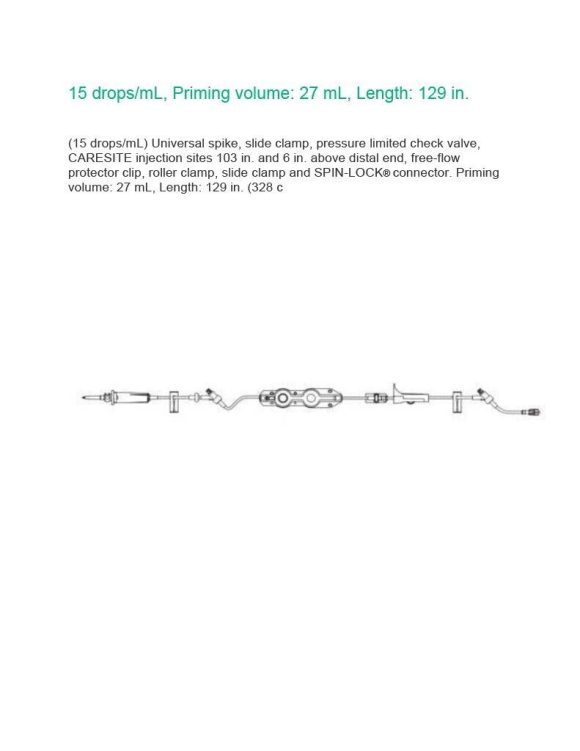

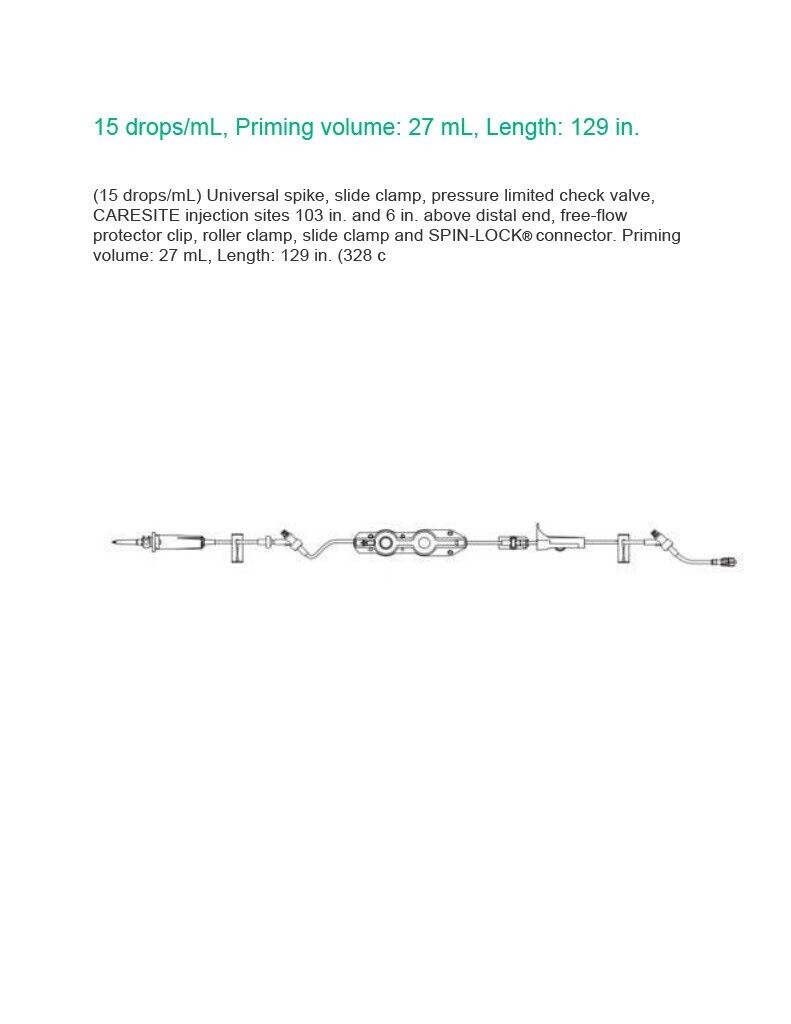

15 drops/mL, Priming volume: 27 mL, Length: 129 in.

(15 drops/mL) Universal spike, slide clamp, pressure limited check valve, CARESITE injection sites 103 in. and 6 in. above distal end, free-flow protector clip, roller clamp, slide clamp and SPIN-LOCK® connector. Priming volume: 27 mL, Length: 129 in. (328 c

Specifications

Product Identification
Product Code 354212
WSN Number 08021-3542-12
Reference Number 354212
Safety Data
BPA Information Contains BPA
DEHP Information Contains DEHP
Latex Information Not Made With Natural Rubber
PVC Information Contains PVC
Storage and Shipping
Total Shelf Life (Months) 036
Ordering Unit Case
Units per Case 24
Dimensions per Case 13.450 x 11.200 x 8.390 inches
Shipping Weight per Case 4.519 lb
Sterility
Sterile Yes

CADD Solis Specifications

Dimensions

  • Size: 4.1 cm x 10.2 cm x 12.7 cm (1.6 in x 4 in x 5in)
  • Weight: 595g (21 oz) including 4 AA Alkaline batteries

Resolution

  • CADD medication cassette reservoir: 0.05 mL per pump stroke nominal
  • CADD administration set: 0.05 mL per pump stroke nominal
  • CADD high volume administration set: 0.1 mL per pump stroke nominal

System Temperatures

  • Operating Temperature: 2°C to 40°C 36°F to 104°F
  • Storage and transportation Temperature: –20°C to 60°C –4°F to 140°F
  • Maximum surface temperature (while operating): 48°C (118°F) Maximum
  • Moisture Protection: Splashproof (E) per IEC 60529
  • Relative Humidity: y 20% to 90% relative humidity, non-condensing
  • Atmospheric Pressure: 70 kPa to 106 kPa 10.2 psi to 15.4 psi

Power

  • Power Source:
    • AC adapter
    • CADD-Solis rechargeable battery pack
    • CADD-Solis Communication Module with integrated rechargeable battery
    • Four AA alkaline batteries (for example, Duracell PC1500 / MN1500, IEC LR6)
  • charging system for internal memory backup battery: The internal memory backup battery uses lithium manganese dioxide technology. It charges whenever the pump is powered on and has a 10-month memory capacity once it has been charged for 250 hours at 20°C (68°F).
  • Battery Fallot alarm: The alarm sounds for at least 2 minutes if the pump has been powered up for a minimum of 4 minutes. Note: Alarm enabled while the pump is in run mode only.

smiths-medical-cadd-solis-operators-manualClick here to download the PDF file.
