Alaris 8120 PCA Pump Module

$895

SKU: 8120 Categories: , Brand:
No Sales Tax
1 year warranty on equipment orders
Commercial financing available for orders over $2,000

Alaris 8120 PCA Pump Module  syringe module for Medley series 8000 and 8015 series Infusion pump

Refurbished and ready for patient use

patient pendant included

1 year warranty

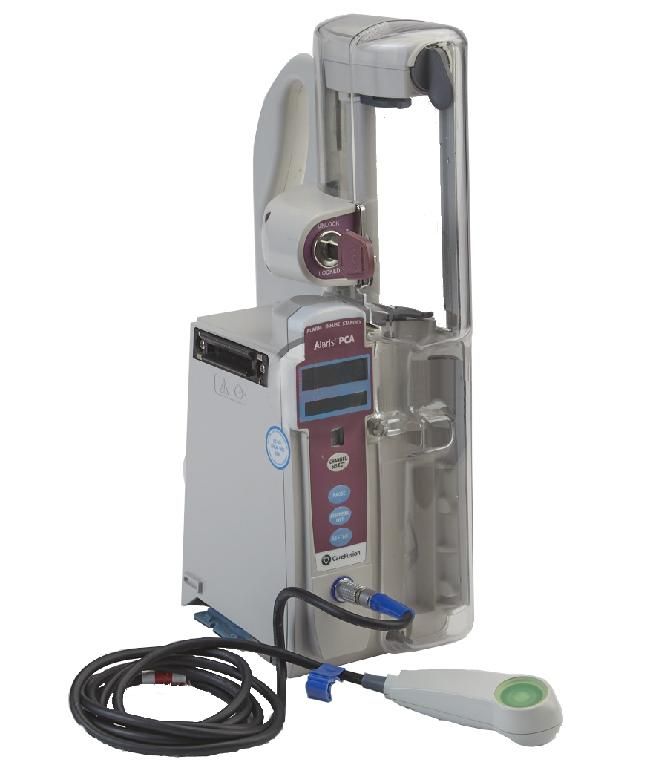

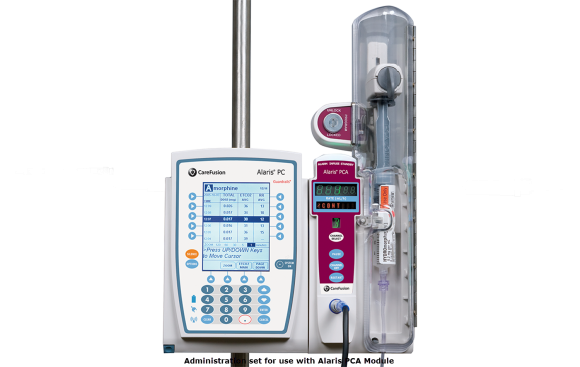

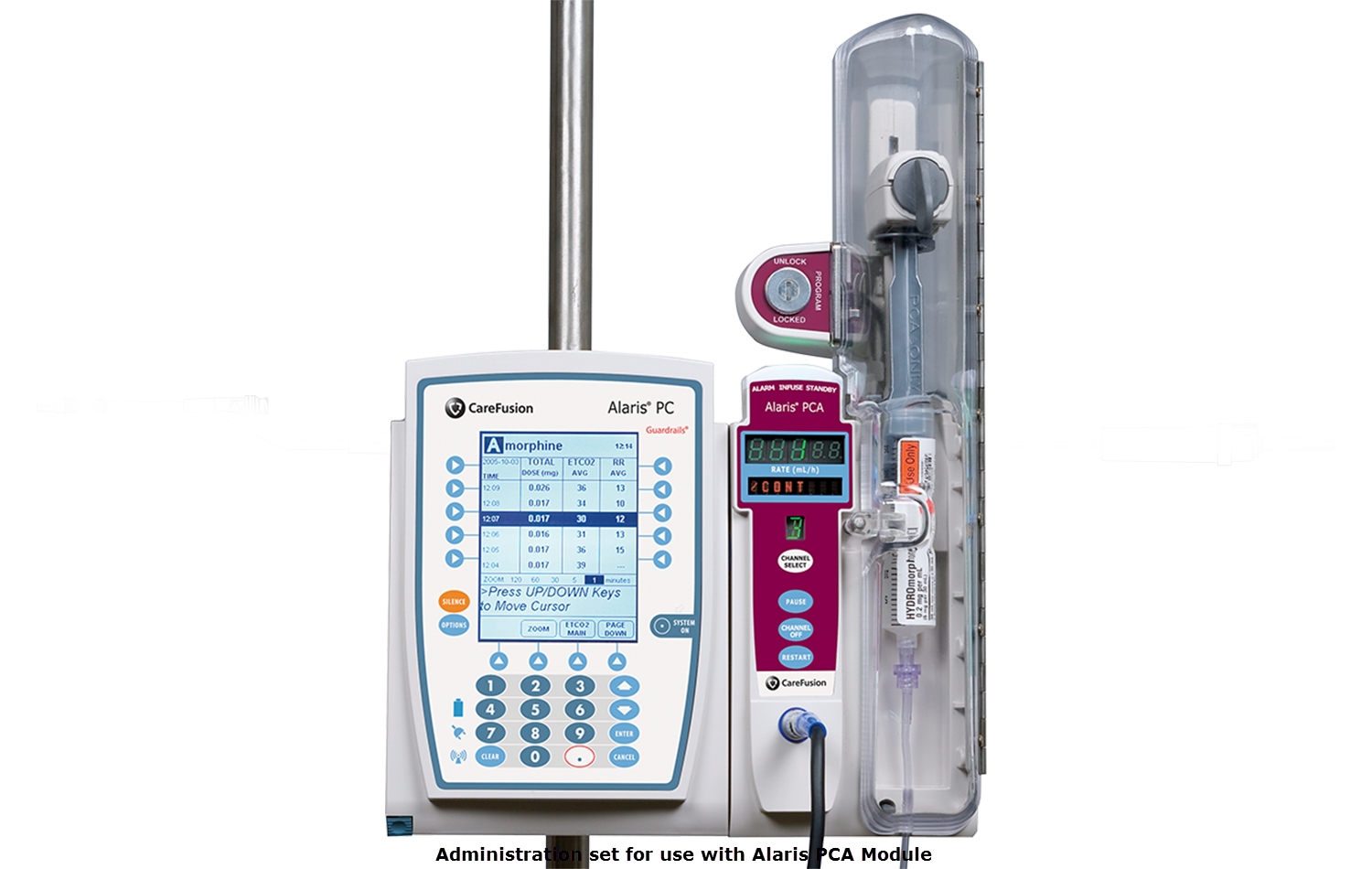

The Alaris 8120 is a PCA module that is used for delivery of pain management medications via patient controlled dosing. It uses syringe-based technology with secure drug access that attaches easily to the Alaris PC. The Alaris 8120 is designed to work with the Alaris PC Unit as well as with other Alaris System modules.

The Alaris 8120 PCA Module uses non-dedicated standard or pre-filled, single-use, disposable syringes (with luer-lock connectors) and administration sets with anti-siphon valves, designed for use on syringe-type PCA devices.

Reviews

There are no reviews yet.

Be the first to review “Alaris 8120 PCA Pump Module”

CADD Solis Specifications

Dimensions

  • Size: 4.1 cm x 10.2 cm x 12.7 cm (1.6 in x 4 in x 5in)
  • Weight: 595g (21 oz) including 4 AA Alkaline batteries

Resolution

  • CADD medication cassette reservoir: 0.05 mL per pump stroke nominal
  • CADD administration set: 0.05 mL per pump stroke nominal
  • CADD high volume administration set: 0.1 mL per pump stroke nominal

System Temperatures

  • Operating Temperature: 2°C to 40°C 36°F to 104°F
  • Storage and transportation Temperature: –20°C to 60°C –4°F to 140°F
  • Maximum surface temperature (while operating): 48°C (118°F) Maximum
  • Moisture Protection: Splashproof (E) per IEC 60529
  • Relative Humidity: y 20% to 90% relative humidity, non-condensing
  • Atmospheric Pressure: 70 kPa to 106 kPa 10.2 psi to 15.4 psi

Power

  • Power Source:
    • AC adapter
    • CADD-Solis rechargeable battery pack
    • CADD-Solis Communication Module with integrated rechargeable battery
    • Four AA alkaline batteries (for example, Duracell PC1500 / MN1500, IEC LR6)
  • charging system for internal memory backup battery: The internal memory backup battery uses lithium manganese dioxide technology. It charges whenever the pump is powered on and has a 10-month memory capacity once it has been charged for 250 hours at 20°C (68°F).
  • Battery Fallot alarm: The alarm sounds for at least 2 minutes if the pump has been powered up for a minimum of 4 minutes. Note: Alarm enabled while the pump is in run mode only.

smiths-medical-cadd-solis-operators-manualClick here to download the PDF file.
