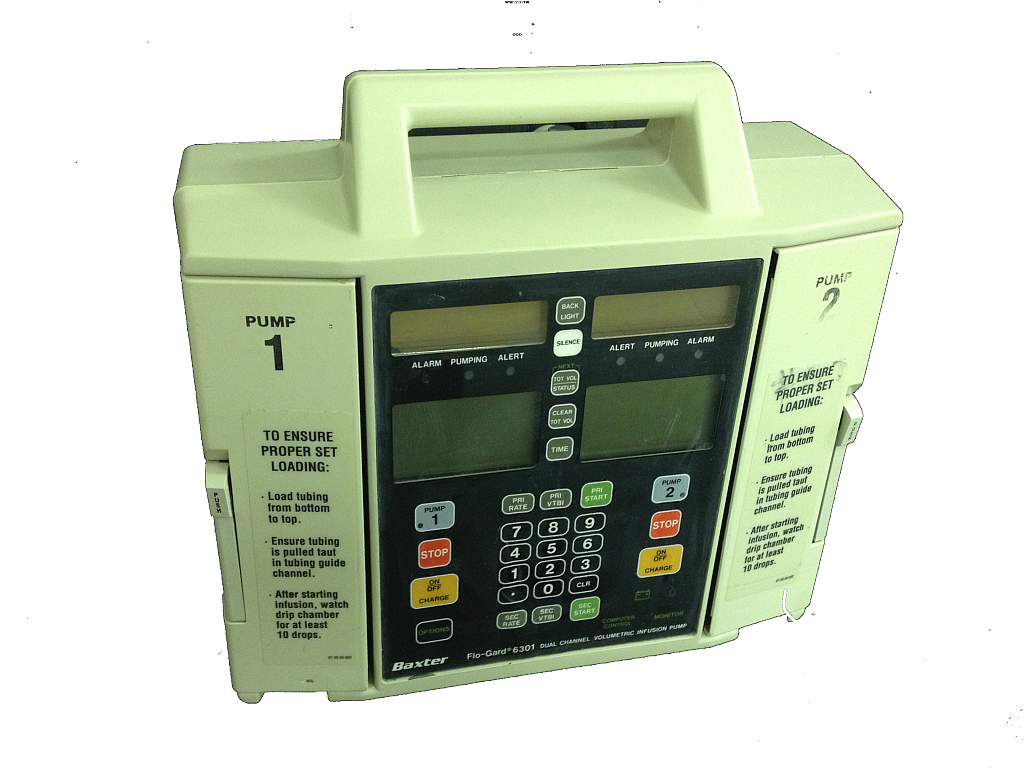

Baxter 6301 Dual Channel Infusion Pump

$795

The Baxter 6301 is a dual channel IV pump that has a programmed delivery profile. The Baxter FLO-GARD 6301 Dual-Channel Volumetric Infusion Pump are industry standard in standard set infusion pump technology.

SKU: 6301 Category: Brand:
✓ No Sales Tax
✓ 1 year warranty on equipment orders
✓ Commercial financing available for orders over $2,000

Refurbished/ Recertified

1 year warranty

The Baxter 6301 Dual Channel Device is a volumetric infusion pump that is an industry standard in infusion technology.  It is capable of delivering a wide variety of fluids over a broad range of infusion rates.  As a Dual Channel pump it provides the clinician with the convenience of delivering fluids to 2 patients at once.  The pump contains 2 linear peristaltic pump heads allowing it to simultaneously infuse 2 different solutions.  Each pump head is independently programmable and permits infusion of primary and secondary medication programs.  The secondary program automatically switches over to the primary program when secondary infusion is complete.  Upon completion of the primary volume to be infused the pump automatically switches to a keep vein open rate.

The pump uses standard IV administration sets that eliminates the need for costly disposable sets and reduces the potential for waste.



Weight 19.00 lbs
Dimensions 16.00 × 16.00 × 16.00 in

Reviews

There are no reviews yet.

Be the first to review “Baxter 6301 Dual Channel Infusion Pump”

CADD Solis Specifications

Dimensions

  • Size: 4.1 cm x 10.2 cm x 12.7 cm (1.6 in x 4 in x 5in)
  • Weight: 595g (21 oz) including 4 AA Alkaline batteries

Resolution

  • CADD medication cassette reservoir: 0.05 mL per pump stroke nominal
  • CADD administration set: 0.05 mL per pump stroke nominal
  • CADD high volume administration set: 0.1 mL per pump stroke nominal

System Temperatures

  • Operating Temperature: 2°C to 40°C 36°F to 104°F
  • Storage and transportation Temperature: –20°C to 60°C –4°F to 140°F
  • Maximum surface temperature (while operating): 48°C (118°F) Maximum
  • Moisture Protection: Splashproof (E) per IEC 60529
  • Relative Humidity: y 20% to 90% relative humidity, non-condensing
  • Atmospheric Pressure: 70 kPa to 106 kPa 10.2 psi to 15.4 psi

Power

  • Power Source:
    • AC adapter
    • CADD-Solis rechargeable battery pack
    • CADD-Solis Communication Module with integrated rechargeable battery
    • Four AA alkaline batteries (for example, Duracell PC1500 / MN1500, IEC LR6)
  • charging system for internal memory backup battery: The internal memory backup battery uses lithium manganese dioxide technology. It charges whenever the pump is powered on and has a 10-month memory capacity once it has been charged for 250 hours at 20°C (68°F).
  • Battery Fallot alarm: The alarm sounds for at least 2 minutes if the pump has been powered up for a minimum of 4 minutes. Note: Alarm enabled while the pump is in run mode only.

smiths-medical-cadd-solis-operators-manualClick here to download the PDF file.
