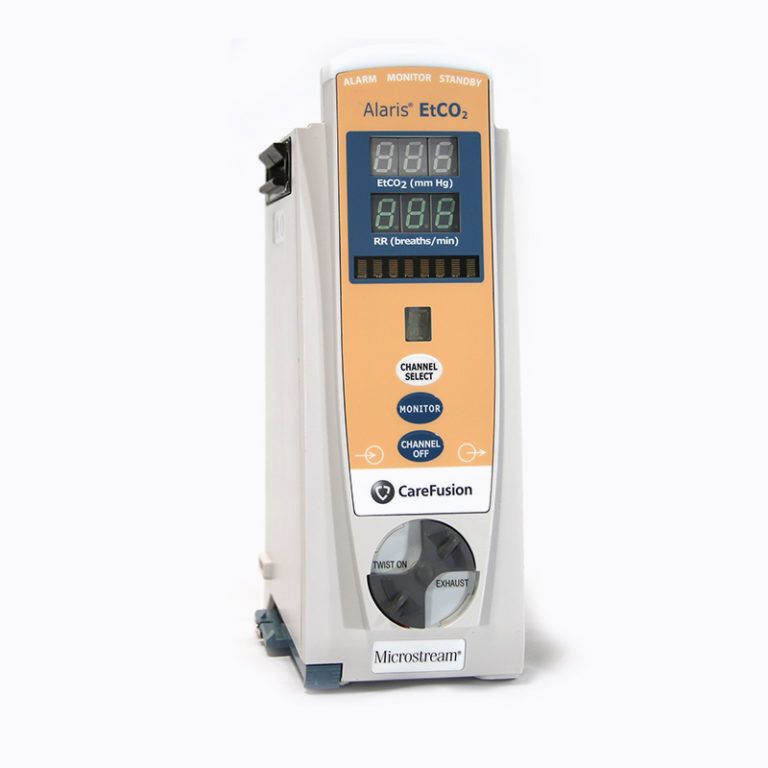

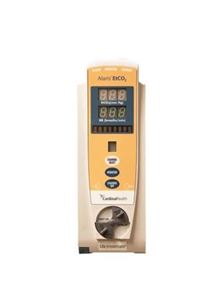

Carefusion Alaris BD 8300 EtCO2 Pump Module

$1,295

20178300 Alaris Carefusion 8300 EtCO2 infusion Refurbished Pump. The Alaris Carefusion 8300 EtCO2 Module Uses Oridion Module patented micro stream Non-dispersive infrared (NDIR) Spectroscopy to continuously measure the amount of CO2 during every breath, the amount of CO2 present at the end of the exhalation (EtCO2) And During inhalation (FiCO2), and the respiratory rate. The EtCO2 Module is a sidestream capnograph.The Disposables deliver a sample of the inhaled and exhaled gasses from the ventilator disposable or directly from the patient into the monitor for CO2 measurement moisture and patient secretions are extracted from the sample by the micro stream inline filter while maintaining the shape of the CO2 waveform. The Alaris Carefusion 8300 EtCO2 Module release a gas sample through micro sample cell (15 Microliters).

  • Reduce risks of opioid infusions.
  • Customizable profiles add flexibility across all patientcare areas.
  • Utilizes sampling lines that cuts the need for moving parts, external sensors or routine calibration.
  • Provides patient EtCO2 sampling products to meet abroad spectrum of sampling needs available with or without oxygen delivery.
SKU: carefusion-alaris-bd-8300-etco2-pump-module Category:
No Sales Tax
1 year warranty on equipment orders
Commercial financing available for orders over $2,000

Reviews

There are no reviews yet.

Be the first to review “Carefusion Alaris BD 8300 EtCO2 Pump Module”

CADD Solis Specifications

Dimensions

  • Size: 4.1 cm x 10.2 cm x 12.7 cm (1.6 in x 4 in x 5in)
  • Weight: 595g (21 oz) including 4 AA Alkaline batteries

Resolution

  • CADD medication cassette reservoir: 0.05 mL per pump stroke nominal
  • CADD administration set: 0.05 mL per pump stroke nominal
  • CADD high volume administration set: 0.1 mL per pump stroke nominal

System Temperatures

  • Operating Temperature: 2°C to 40°C 36°F to 104°F
  • Storage and transportation Temperature: –20°C to 60°C –4°F to 140°F
  • Maximum surface temperature (while operating): 48°C (118°F) Maximum
  • Moisture Protection: Splashproof (E) per IEC 60529
  • Relative Humidity: y 20% to 90% relative humidity, non-condensing
  • Atmospheric Pressure: 70 kPa to 106 kPa 10.2 psi to 15.4 psi

Power

  • Power Source:
    • AC adapter
    • CADD-Solis rechargeable battery pack
    • CADD-Solis Communication Module with integrated rechargeable battery
    • Four AA alkaline batteries (for example, Duracell PC1500 / MN1500, IEC LR6)
  • charging system for internal memory backup battery: The internal memory backup battery uses lithium manganese dioxide technology. It charges whenever the pump is powered on and has a 10-month memory capacity once it has been charged for 250 hours at 20°C (68°F).
  • Battery Fallot alarm: The alarm sounds for at least 2 minutes if the pump has been powered up for a minimum of 4 minutes. Note: Alarm enabled while the pump is in run mode only.

smiths-medical-cadd-solis-operators-manualClick here to download the PDF file.
